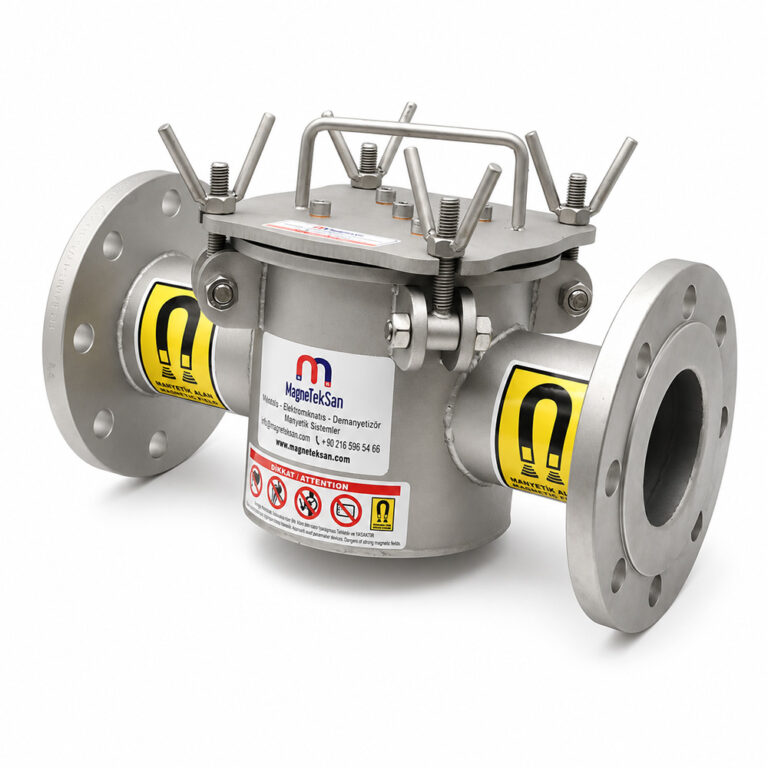

DN200 Magnetic Filter – Dirt Holder – Cast Body – 150°C Resistant – 3 Rod Special System for Heating Apartment
DN200 Magnetic Filter – Dirt Holder – Cast Body – 150°C Resistant – 3 Rod Special System for Heating Apartment
General characteristics;
- With flange connection
- Neodium has a very strong magnet
- Cast body
- Sealed
Technical specifications;
- Input output: DN200
- Magnetic BR: 12,000 Gauss (±5%)
- Inner filter rod diameter: 32 mm
- Max operating temperature: 80°C
Dirt Holder, Sediment Holder Filter Manufacturing
These cast-body magnetic filters, which are usually installed on heating lines, natural gas infrastructures, are also called dirt arresters. Besides the ease of cleaning, these rod magnets, which are very strong, have a magnetic strength of 12,000 Gauss.
- Has an easy-to-clean feature.
- High-gaussian neodymium magnets are used.
- The magnetic filter holds the metal powders in the liquid up to the micron level.
Sediment retaining magnetic filters capture dirt and sediments that accumulate in pipelines in installation systems and are in a flowing position. In this way, while there is no wear in the pipe, the pipe protects its health. At the same time, it eliminates the chance of clogging of the pipe infrastructure.
It is manufactured to be resistant to boiling water above 100°C, especially resistant to temperatures up to 150°C. It can be produced in a durable way up to 200°C temperature on demand.
The very robust cast body makes this product durable while at the same time resistant to corrosion. Installation is made to the system from the flange connections located on the housing.
End of Chemical Cleaning
The DN200 dirt catcher filter, which can be used in sites with 50-1000 houses, has a very high capacity. Cleaning with non-toxic materials preferred by many enterprises both damages the pipes and is not a complete solution.
This magnetic filter, which keeps the iron dust accumulated in heating and cooling systems with iron pipes at the thinnest micron level, has a high magnetic field strength. Thanks to the product, the number of metal particles in the line is minimized while the efficiency of the heating-cooling system is increased.
