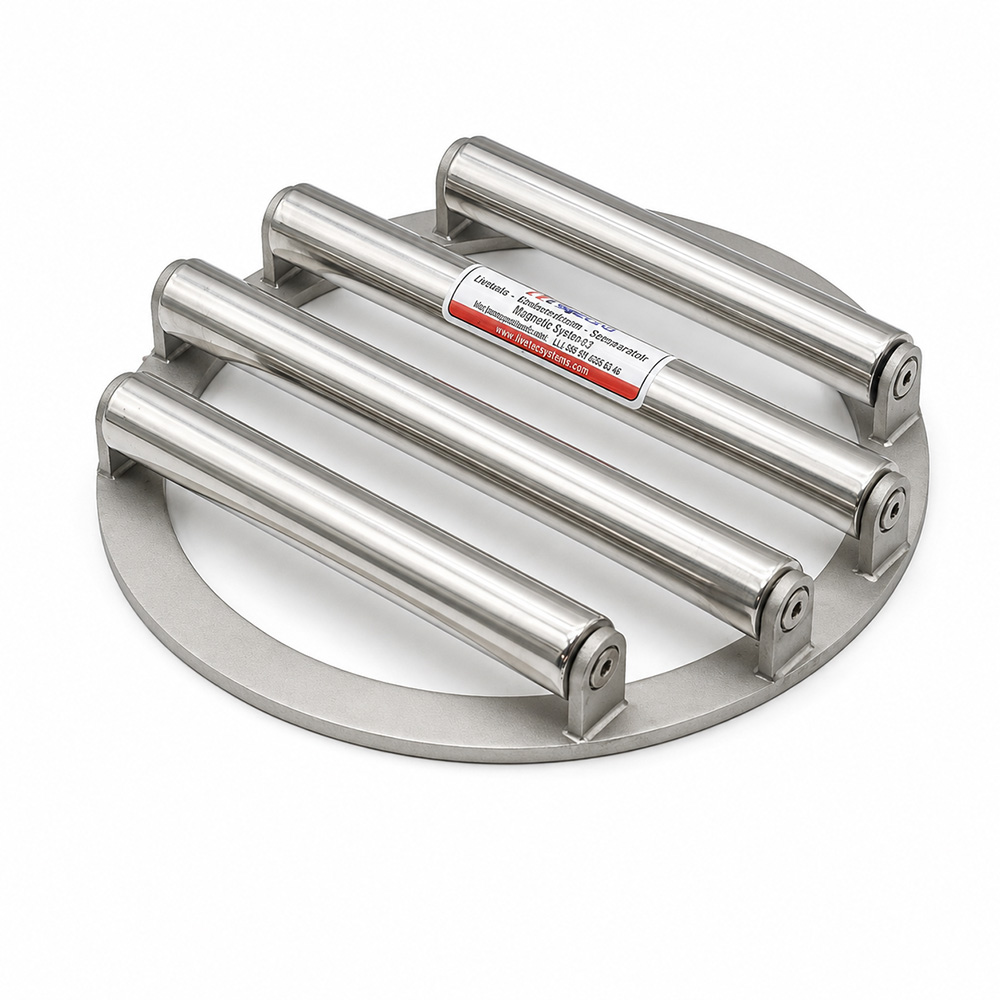

Ø250 mm Neodymium Round Grid Magnet for Freeze-Dried Fruit
Ø250 mm Neodymium Round Grid Magnet for Freeze-Dried Fruit
- Designed for freeze-dried fruit and dried fruit processing lines.
- Helps capture ferromagnetic metal contamination before packaging.
- Round magnetic grid with a nominal diameter of Ø250 mm.
- Contains four neodymium magnetic rods.
- Suitable for integration into compatible product transfer points.
- Uses a permanent magnetic system without electrical excitation.
- Allows retained metal particles to be removed during manual cleaning.
- Can be considered for customised magnetic separation installations.
Technical Features
- Product Type: Round Grid Magnet
- Grid Diameter: Ø250 mm
- Magnetic Rod Quantity: 4
- Magnet Material: Neodymium (NdFeB)
- Magnetic System: Permanent Magnet
- Main Application: Freeze-Dried Fruit Processing
- Additional Application: Dried Fruit Processing
- Process Position: Before Packaging
- Separation Target: Ferromagnetic Metal Particles
- Installation: Compatible Product Flow Openings
- Cleaning Method: Manual
- Electrical Power for Magnetisation: Not Required
The Neodymium Round Grid Magnet Ø250 mm is designed to help remove ferromagnetic metal contaminants from freeze-dried fruit and dried fruit processing lines before packaging. Its round magnetic grid contains four permanent neodymium magnetic rods that attract suitable iron and ferromagnetic steel particles passing close to their surfaces. The separator can be integrated into compatible product transfer openings, operates without electrical power for magnetisation, and requires periodic manual cleaning.
| Technical Specification | Description |
|---|---|
| Product Type | Round Grid Magnet |
| Grid Diameter | Ø250 mm |
| Overall Size | Ø250 mm nominal diameter |
| Magnetic Rod Quantity | 4 |
| Magnetic Material | Neodymium (NdFeB) |
| Magnetic System | Permanent Magnet |
| Main Function | Ferromagnetic Metal Separation |
| Target Contaminants | Iron and Ferromagnetic Steel Particles |
| Primary Application | Freeze-Dried Fruit Processing |
| Secondary Application | Dried Fruit Processing |
| Process Stage | Before Packaging |
| Installation Location | Compatible Product Transfer Openings |
| Separator Configuration | Round Grid with Four Magnetic Rods |
| Material Flow | Suitable Dry, Free-Flowing Products |
| Cleaning Method | Manual |
| Electrical Requirement | None for Magnetic Field Generation |
1. Ø250 mm Neodymium Round Grid Magnet for Freeze-Dried Fruit
The Ø250 mm Neodymium Round Grid Magnet is designed for ferromagnetic contamination control in freeze-dried fruit and dried fruit production lines. Its primary purpose is to help protect product quality during material transfer before packaging.
The separator consists of a round magnetic grid incorporating four neodymium magnetic rods. These rods provide magnetic collection surfaces within the product flow path.
When suitable iron or ferromagnetic steel particles pass sufficiently close to the rods, they can be attracted and retained. The remaining fruit product continues through the processing line.
The performance of the separator depends on the material characteristics, installation geometry, flow rate and contaminant properties. The magnetic grid should be considered one component of a broader contamination control programme.
2. What Is a Neodymium Round Grid Magnet?
A neodymium round grid magnet is an industrial magnetic separator containing permanent magnetic rods arranged within a circular framework. It is commonly installed where materials pass through a suitable opening.
The magnetic rods use neodymium-based permanent magnets, generally identified as NdFeB. Their magnetic field does not require continuous electrical power.
The grid arrangement increases the opportunity for ferromagnetic particles to pass near a magnetic collection surface. Particles attracted to the rods remain there until cleaning.
A magnetic grid is not equivalent to a metal detector. It is primarily intended to retain suitable ferromagnetic contaminants rather than identify every type of metal.
3. Ø250 mm Round Magnetic Grid Diameter

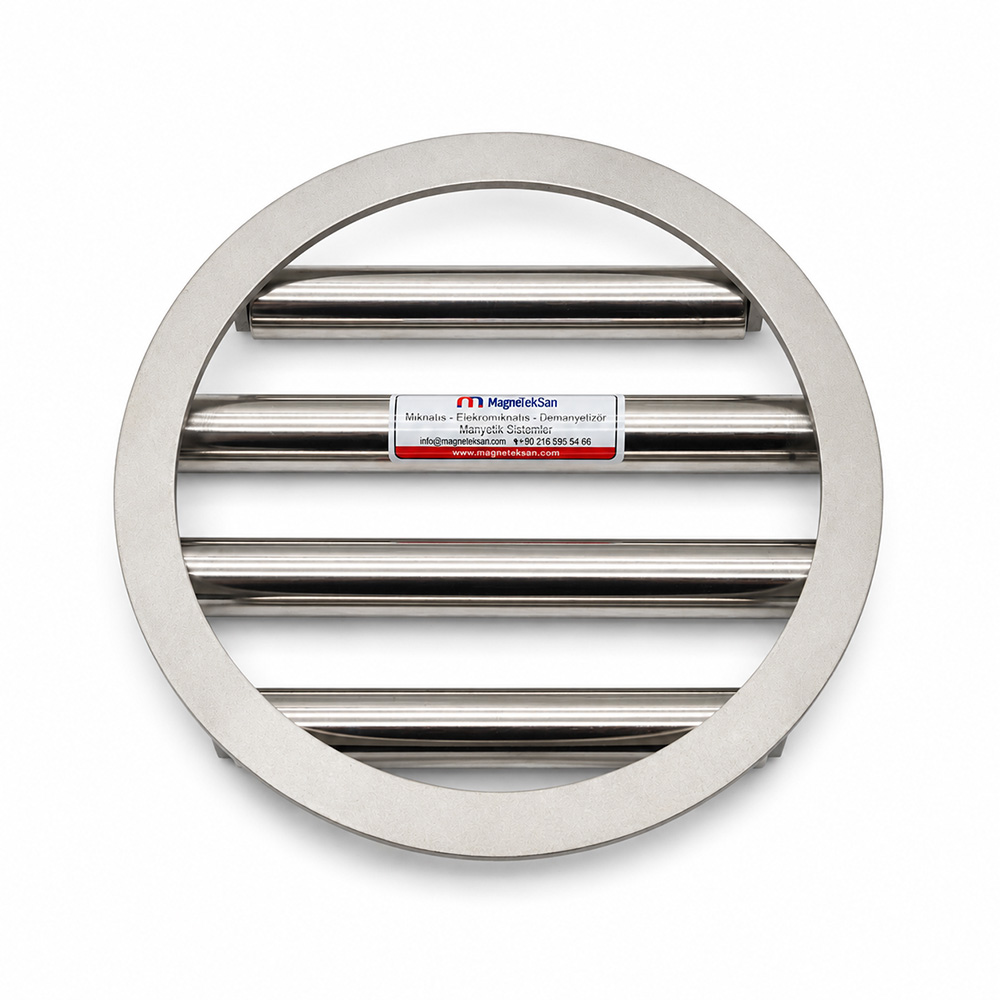

The product has a nominal round grid diameter of Ø250 mm. This dimension is important when assessing compatibility with existing process openings and supporting equipment.
A circular grid can be considered for suitable round hoppers, discharge openings and product transfer connections. The actual mounting arrangement must match the installation.
Before installation, the available opening, mounting clearance and product flow pattern should be checked. The nominal diameter alone does not establish the dimensions of any mounting flange or fixing arrangement.
Correct dimensional matching helps prevent unsuitable installation and unnecessary restrictions to product flow. Additional mounting details should be confirmed against the equipment drawing.
4. Four Neodymium Magnetic Rod Configuration
This separator incorporates four neodymium magnetic rods. Their arrangement creates multiple magnetic collection surfaces across the circular passage.
The four-rod configuration is intended to increase contact opportunities between moving material and magnetic surfaces. The effectiveness of this arrangement depends on the distribution of the product flow.
Particles travelling directly past a magnetic rod may experience stronger attraction than particles travelling farther away. The available working distance is therefore important.
The number of rods is confirmed, but their individual diameter and exact spacing have not been established. These dimensions should not be assumed when preparing a replacement or installation drawing.
5. Permanent Neodymium Magnetic System
The magnetic grid uses a permanent neodymium magnetic system. It generates its magnetic field without requiring electricity for magnetisation.
Permanent magnets can be suitable for continuous magnetic exposure during material transfer. However, the achievable separation performance depends on the design of the complete magnetic assembly.
The magnetic field remains active even when surrounding machinery is switched off. Maintenance procedures must account for this permanent attraction.
The exact neodymium grade, surface Gauss value and maximum operating temperature for this specific separator have not been verified. These specifications should be confirmed before being included in technical purchasing documents.
6. Ferromagnetic Metal Separation in Fruit Processing
Fruit processing equipment can be exposed to ferromagnetic contamination originating from incoming materials, maintenance activities or equipment wear. Magnetic separation provides an additional control measure.
The separator is designed to help capture suitable iron and ferromagnetic steel particles from the product stream. These particles must pass sufficiently close to the magnetic rods.
Captured metal remains on the collection surfaces until it is removed during cleaning. This helps separate the retained contamination from the material continuing through the line.
The separator cannot guarantee complete removal of every metal particle. Its performance must be evaluated under the actual operating conditions of the production process.
7. Magnetic Separation in Freeze-Drying Production Lines
Freeze-drying removes moisture from products under controlled processing conditions. Following drying, the resulting fruit pieces may pass through conveying, transfer and packaging operations.
Magnetic separation can be positioned at a suitable transfer point after drying. The objective is to help intercept ferromagnetic contaminants before the finished product reaches the packaging stage.
Freeze-dried fruit can have a fragile structure. Consequently, the installation should be designed to limit unnecessary product impact, breakage and accumulation.
The grid must be assessed for compatibility with the specific fruit product and transfer arrangement. A suitable magnetic separator should support both contamination control and stable product handling.
8. Magnetic Separation for Dried Fruit Production
Dried fruit production involves handling products with different sizes, shapes and surface characteristics. These differences can affect how material moves through a magnetic grid.
The Ø250 mm separator can be considered for compatible dried fruit transfer points. Its four magnetic rods provide collection surfaces for suitable ferromagnetic contamination.
Some dried fruits may be sticky or prone to bridging. Such products require particular attention to rod spacing, opening dimensions and material flow.
The grid should be selected according to the actual product characteristics rather than its nominal diameter alone. Trials may be necessary where flow behaviour is uncertain.
9. Ferrous Metal Control Before Packaging
Packaging is an important stage in the production of freeze-dried and dried fruit products. Magnetic separation before packaging can provide an additional opportunity to retain ferromagnetic contamination.
A magnetic grid may be installed at a compatible discharge or transfer point upstream of the packaging equipment. The arrangement should direct product flow through the intended separation area.
Particles of suitable ferromagnetic metals can be retained on the magnetic rods while the remaining product proceeds toward packaging. Periodic cleaning is required to remove collected contamination.
Magnetic separation should complement, rather than replace, other appropriate inspection and quality control measures. The complete control strategy depends on the hazards identified in the production process.
10. Installation at Product Transfer Openings
Product transfer openings connect different machines or stages within a production line. They may provide suitable locations for installing a round magnetic grid.
The nominal Ø250 mm diameter must be checked against the actual dimensions of the opening. The supporting structure must also accommodate the weight and mounting requirements of the assembly.
The separator should be positioned to expose the product stream to its magnetic rods. Uneven flow distribution can reduce the opportunity for some contaminants to approach the magnetic surfaces.
Installation should also allow convenient access for inspection and cleaning. A difficult-to-access separator may be harder to maintain consistently.
11. Integration into Hoppers and Discharge Points
Hoppers and discharge points are commonly used to control the transfer of bulk products. A round magnetic grid can be considered where the dimensions and flow conditions are compatible.
The grid may be positioned within a suitable product discharge arrangement. The exact location should be selected with reference to the hopper geometry and expected material movement.
For fragile freeze-dried fruit, the product path should avoid unnecessary obstruction. The magnetic rods must provide useful collection surfaces without creating unacceptable handling problems.
The suitability of a hopper installation should be reviewed before manufacturing mounting components. The confirmed grid diameter does not define every mechanical connection detail.
12. Magnetic Separation of Dry, Free-Flowing Products
Dry, free-flowing materials can pass through a magnetic grid under gravity or another suitable conveying arrangement. This makes product flow behaviour a key consideration.
Freeze-dried fruit pieces may differ significantly from powders and fine granules. Their size and shape influence the spaces needed between the magnetic rods.
The separator should allow the product to pass through without excessive accumulation. At the same time, the arrangement should provide opportunities for ferromagnetic particles to approach the rods.
The product’s moisture level, fragility and flow properties should be assessed before installation. A grid suitable for one dry product may not perform identically with another.
13. Protecting Fragile Freeze-Dried Fruit Pieces
Freeze-dried fruit can be brittle and susceptible to damage during handling. Separator placement should therefore consider product preservation as well as magnetic collection.
The impact of fruit pieces against rods or supporting surfaces may produce breakage or fines. The risk depends on drop height, product size and operating conditions.
A properly designed transfer arrangement can help reduce unnecessary impacts. The separator should not be positioned solely to maximise contact between fruit and magnetic surfaces.
Product trials may be useful when handling especially delicate fruit pieces. The installation should achieve a practical balance between product integrity and ferromagnetic contamination control.
14. Magnetic Rod Positioning and Product Flow
The position of the four magnetic rods influences the interaction between the product stream and the magnetic field. Their arrangement should be evaluated as part of the complete separator design.
Ferromagnetic particles must pass sufficiently close to a rod for magnetic attraction to influence their movement. Flow paths that remain far from the rods may provide reduced capture opportunities.
The distribution of material across the round opening is therefore important. A concentrated stream and an evenly distributed stream may interact differently with the same grid.
Where necessary, the surrounding equipment can be designed to improve product distribution. Any changes should preserve acceptable flow and minimise product damage.
15. Magnetic Working Distance
Magnetic working distance refers to the separation between a contaminant and the active magnetic collection surface. It is a critical factor in magnetic separation.
A suitable ferromagnetic particle passing close to a magnetic rod may experience greater attraction than a similar particle passing farther away. Particle size and magnetic properties also influence the result.
The arrangement of four rods creates several opportunities for magnetic interaction. However, the exact capture distance cannot be determined from the rod count alone.
No guaranteed working distance has been established for this product. Performance requirements should be verified through suitable testing with representative contaminants.
16. Material Flow Rate and Separation Performance
Material flow rate affects the time available for contaminants to interact with the magnetic field. It can also influence the path followed by particles through the grid.
At higher flow velocities, some particles may spend less time near a magnetic rod. The movement and inertia of larger product pieces may further affect the separation process.
The appropriate operating capacity depends on the fruit product, opening dimensions and installation configuration. The Ø250 mm grid diameter does not establish a universal throughput rating.
Any required capacity should be assessed using the actual product and production conditions. Flow testing may be appropriate before finalising a new installation.
17. Iron and Ferromagnetic Steel Contaminants
Iron and many carbon steel materials exhibit ferromagnetic behaviour. Such materials can respond strongly to an appropriate magnetic field.
Possible contaminants include small steel fragments, iron particles, wire pieces and debris generated by equipment wear. Their dimensions and magnetic properties may vary.
The neodymium rods can help attract and retain suitable contaminants that pass close enough to their surfaces. Retained particles are subsequently removed during cleaning.
Not every steel grade responds in the same way. Some stainless steels exhibit weak magnetic attraction and may not be reliably captured.
18. Limitations with Nonmagnetic Metals
A permanent magnetic grid is primarily designed to separate ferromagnetic contaminants. It does not provide universal separation of all metallic materials.
Aluminium, copper and brass are not reliably retained by the ordinary attraction of permanent magnetic rods. Certain stainless steel grades may also respond weakly.
Where nonmagnetic metal contamination presents a significant hazard, additional inspection or separation technology may be necessary. The appropriate method depends on the identified risks.
Magnetic separation and metal detection perform different functions. They can form complementary elements of a broader product contamination control programme.
19. Manual Cleaning of the Magnetic Grid
During operation, captured ferromagnetic particles may accumulate on the magnetic rods. Regular cleaning is necessary to remove these deposits.
Before cleaning, associated machinery must be stopped and safely isolated against unexpected movement or start-up. The approved maintenance procedure should be followed.
Retained metal particles should be removed carefully using suitable tools and personal protective equipment. The permanent magnetic field remains active throughout the cleaning operation.
After cleaning, the rods and supporting components should be inspected before production resumes. The cleaning method should be appropriate for the specific product and installation.
20. Determining Cleaning Intervals
The required cleaning interval depends on the amount of ferromagnetic contamination entering the separator. A single interval cannot be recommended for every production line.
During initial operation, more frequent inspections can help establish the rate at which metal particles accumulate. These observations provide a basis for a suitable cleaning schedule.
Changes in raw materials, production volume or equipment condition may affect contamination levels. Cleaning frequency may need to be adjusted when these conditions change.
Recording the amount and type of collected metal can support preventive maintenance. Unusual increases may indicate wear or damage elsewhere in the processing line.
21. Inspection and Preventive Maintenance
Routine inspection helps confirm that the magnetic grid remains correctly installed and accessible. The supporting structure and mounting components should be checked for visible damage.
The magnetic rods should be examined for contamination build-up and possible surface defects. Conditions affecting safe operation or separation performance should be addressed.
Changes to the surrounding machinery may alter the product flow path. Such modifications should trigger a review of the separator’s position and operating conditions.
Where magnetic performance verification is required, a suitable measurement or functional test procedure should be established. Acceptance criteria should reflect the needs of the application.
22. Hygiene Considerations in Fruit Processing
Fruit processing requires equipment that can be cleaned and maintained according to the relevant production hygiene requirements. Magnetic separators should be assessed as part of this system.
The design should avoid unnecessary areas where fruit fragments and residues can accumulate. Access to the magnetic rods is important for effective inspection and cleaning.
Material selection and surface finish must be appropriate for the intended application. Specific stainless steel grades and food-contact compliance documentation should be confirmed for the supplied unit.
A magnetic grid should not be assumed to meet a particular certification standard without supporting documentation. Hygiene suitability must be assessed against the actual installation and operating requirements.
23. Preventing Product Accumulation and Blockages
Product accumulation can interfere with normal flow through a magnetic grid. The risk depends on fruit size, product condition and the spaces available between the rods.
Freeze-dried fruit pieces may have irregular shapes. These shapes can affect how products pass through the separator and whether bridging occurs.
The grid should be installed where adequate clearance and product movement can be maintained. The surrounding equipment may require adjustment to support consistent flow.
Any signs of blockage should be investigated before continued operation. The separator should not be modified without reviewing the consequences for magnetic separation and equipment safety.
24. Magnetic Separation and Product Quality Control
Magnetic separation can form part of a production facility’s contamination control procedures. Its function is to help retain suitable ferromagnetic metal particles.
For freeze-dried and dried fruit, the separator may provide an additional control point before packaging. This position can support the wider inspection strategy.
The presence of a magnetic grid does not eliminate the need for risk assessment, maintenance or other appropriate quality control measures. Its performance must be considered within the complete production process.
Documented inspections and cleaning records can help demonstrate that the separator is being maintained. Any required verification programme should be defined by the facility’s quality procedures.
25. Custom Round Magnetic Grid Manufacturing
Industrial production lines may require magnetic grids with different dimensions or mounting arrangements. Customisation can help achieve compatibility with specific equipment.
Magneteksan can evaluate round magnetic grid designs for different product transfer openings. The required diameter, rod arrangement and installation details should be established during the design process.
The Ø250 mm four-rod model provides a reference configuration for freeze-dried and dried fruit applications. Other arrangements may be appropriate for different flow conditions.
Custom manufacturing should be based on the actual process requirements. Magnetic performance, mechanical compatibility and cleaning access must all be considered.
26. Custom Magnetic Rod and Grid Configurations
The number and arrangement of magnetic rods influence the available collection surfaces within a separator. Different applications may therefore require different grid configurations.
A system with additional rods can provide more magnetic collection surfaces, but it may also reduce the available space for material flow. This trade-off must be evaluated.
The dimensions and properties of the processed fruit are especially important when selecting a rod arrangement. Fragile or irregularly shaped products may require additional attention.
The supplied model contains four neodymium rods. Any alternative rod count, rod diameter or magnetic specification should be confirmed as a separate design requirement.
27. Selecting a Magnetic Separator for Freeze-Dried Fruit
Selecting a magnetic separator begins with understanding the production process. Important information includes the product type, expected flow rate and available installation space.
The size and condition of the fruit pieces should also be considered. These factors influence how the product passes through a magnetic grid.
The nature of the expected metal contamination is another important consideration. Magnetic separation is primarily suited to ferromagnetic contaminants rather than all metallic materials.
The Ø250 mm Neodymium Round Grid Magnet may be considered where its dimensions and four-rod arrangement suit the application. Final selection should follow a technical review of the installation.
28. Magneteksan Magnetic Separation Solutions for Fruit Processing
Magneteksan develops industrial magnetic separation components and customised systems for different material processing applications. Round magnetic grids are among the available separator configurations.
The Ø250 mm Neodymium Round Grid Magnet is intended for ferromagnetic contamination control in freeze-dried fruit and dried fruit production lines. Its four neodymium magnetic rods provide collection surfaces within a compatible product flow opening.
The permanent magnetic system operates without electrical power for field generation. Collected ferromagnetic particles must be removed through periodic manual cleaning.
Successful integration depends on product characteristics, installation dimensions, flow behaviour and maintenance requirements. These factors should guide the selection and use of the magnetic grid within the complete fruit processing line.
